Scenario 10: Console Login via Keycloak

Objective: Verify that the OpenShift console redirects to Keycloak for authentication and correctly identifies the user after login.

Console URL: https://console-openshift-console.apps.brcox-sm-dev-hc.hcp-sm-azure.azure.devcluster.openshift.com

Overall Scenario 10: PASS — All 3 checks verified.
StepCheckResultEvidence
1 Console redirects to Keycloak login PASS Browser navigated to keycloak-keycloak.apps.brcox-mgmt.../realms/master/protocol/openid-connect/auth with client_id=console-test
2 Redirect back to console after authentication PASS Console loaded at console-openshift-console.apps.brcox-sm-dev-hc.../k8s/cluster/projects
3 Console displays Keycloak user identity PASS Top-right corner: keycloak-testuser-1@example.com

Browser-Based Verification Flow

Step 1: Console redirects to Keycloak login page

Opened console URL in an incognito browser window. The console automatically redirected to the Keycloak login page with the correct client_id=console-test and redirect_uri pointing to the guest cluster console.

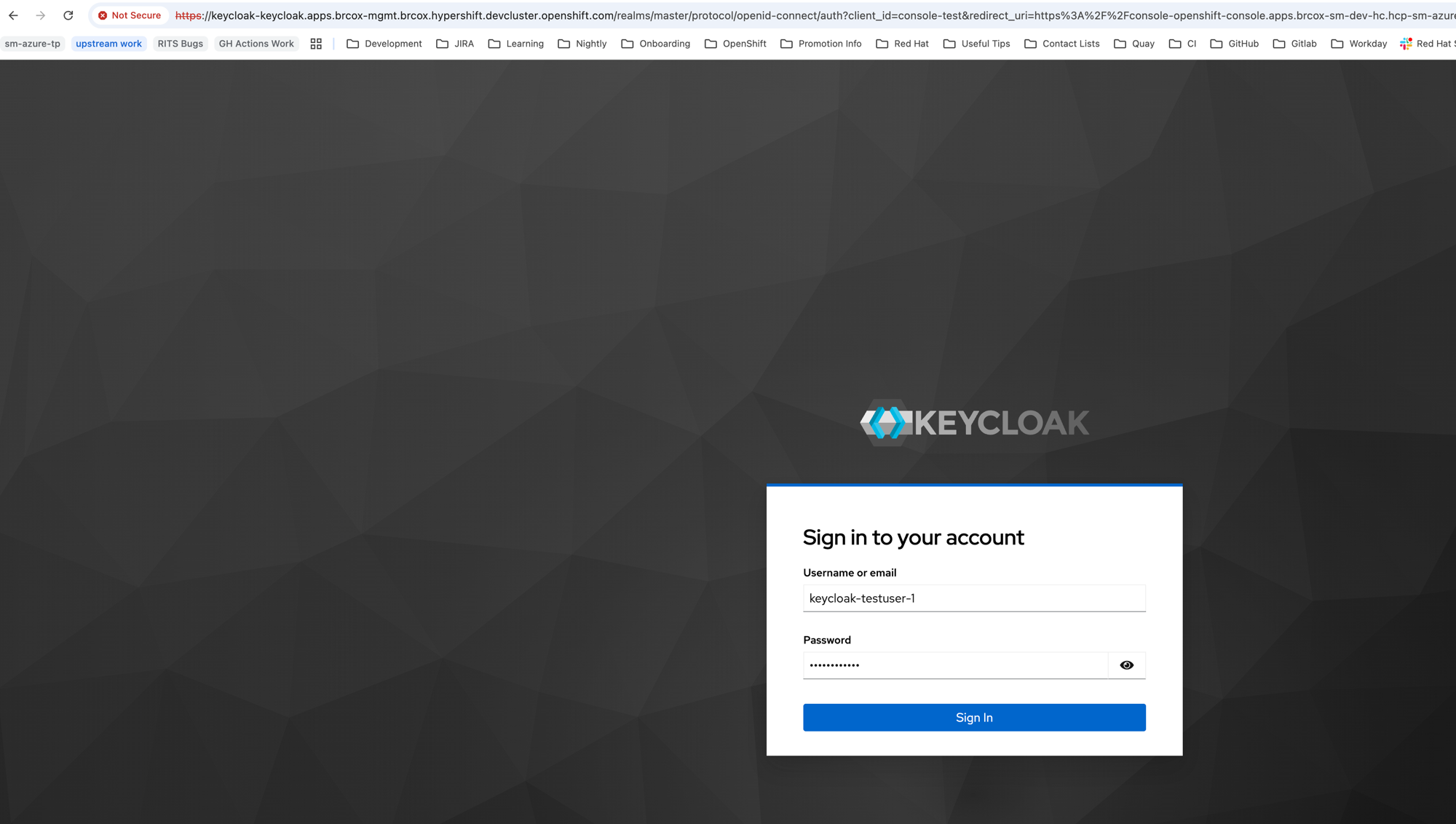

Keycloak login page showing Sign in form with username keycloak-testuser-1

Keycloak authorization endpoint on the management cluster. URL bar shows client_id=console-test and redirect_uri=...console-openshift-console.apps.brcox-sm-dev-hc....

Steps 2 & 3: Console loaded with Keycloak user identity

After signing in with keycloak-testuser-1, the browser redirected back to the OpenShift console with the user identity displayed.

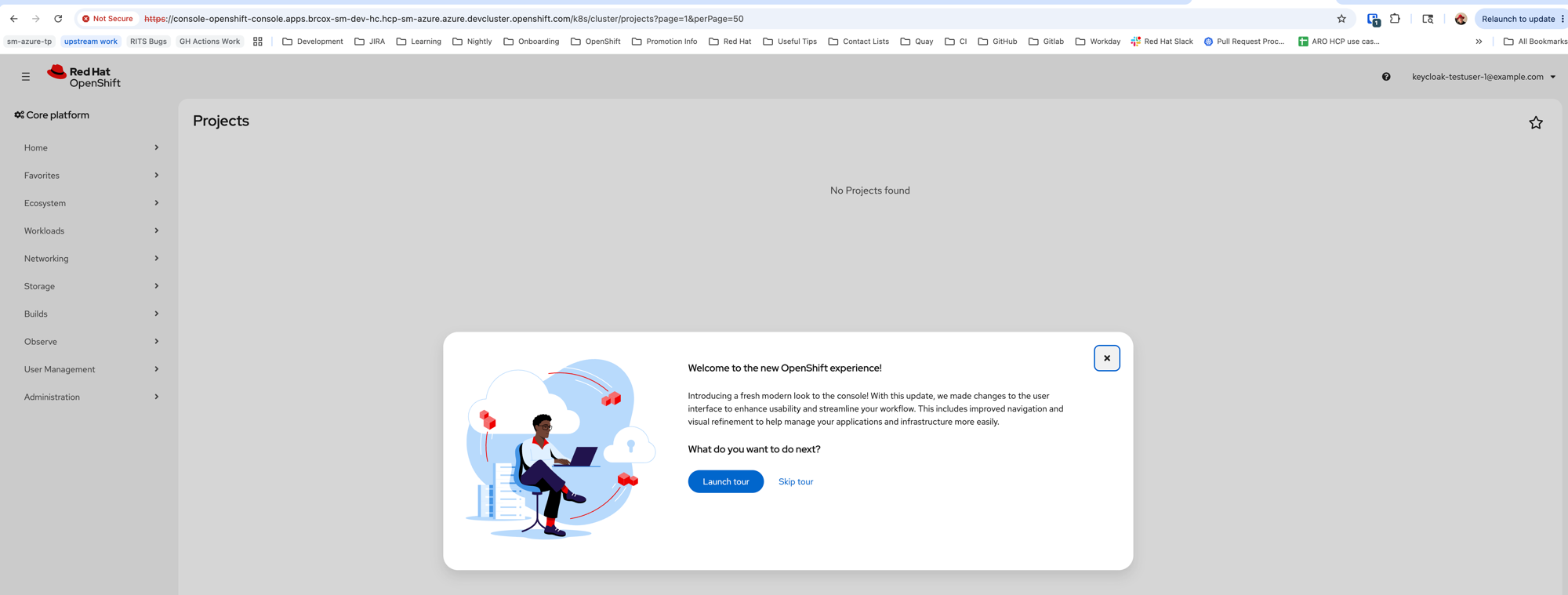

OpenShift console showing keycloak-testuser-1@example.com in top right

Console shows keycloak-testuser-1@example.com in the top-right corner. “No Projects found” is expected — the test user has no RBAC roles assigned.

Key observations:
