Scenario 7: Console Login via Azure AD

Objective: Verify that the OpenShift console redirects to Azure AD for authentication and correctly identifies the user after login.

Console URL: https://console-openshift-console.apps.brcox-sm-dev-hc.hcp-sm-azure.azure.devcluster.openshift.com

Overall Scenario 7: PASS — All 4 checks verified.

Step	Check	Result	Evidence
1	Console redirects to Azure AD login	PASS	Browser navigated to `login.microsoftonline.com/.../oauth2/v2.0/authorize` with correct `client_id`
2	Azure AD federated SSO completes	PASS	Redirected to Red Hat Internal SSO (`auth.redhat.com`), then back to Azure AD "Stay signed in?" prompt
3	Redirect back to console after authentication	PASS	Console loaded at `console-openshift-console.apps.brcox-sm-dev-hc.../k8s/cluster/projects`
4	Console displays OIDC user identity	PASS	Top-right corner: `br...@redhat.com`

Browser-Based Verification Flow

Step 1: Navigate to console (incognito window)

Opened console URL in an incognito browser window. The console automatically redirected to Azure AD login with the correct client_id and redirect_uri.

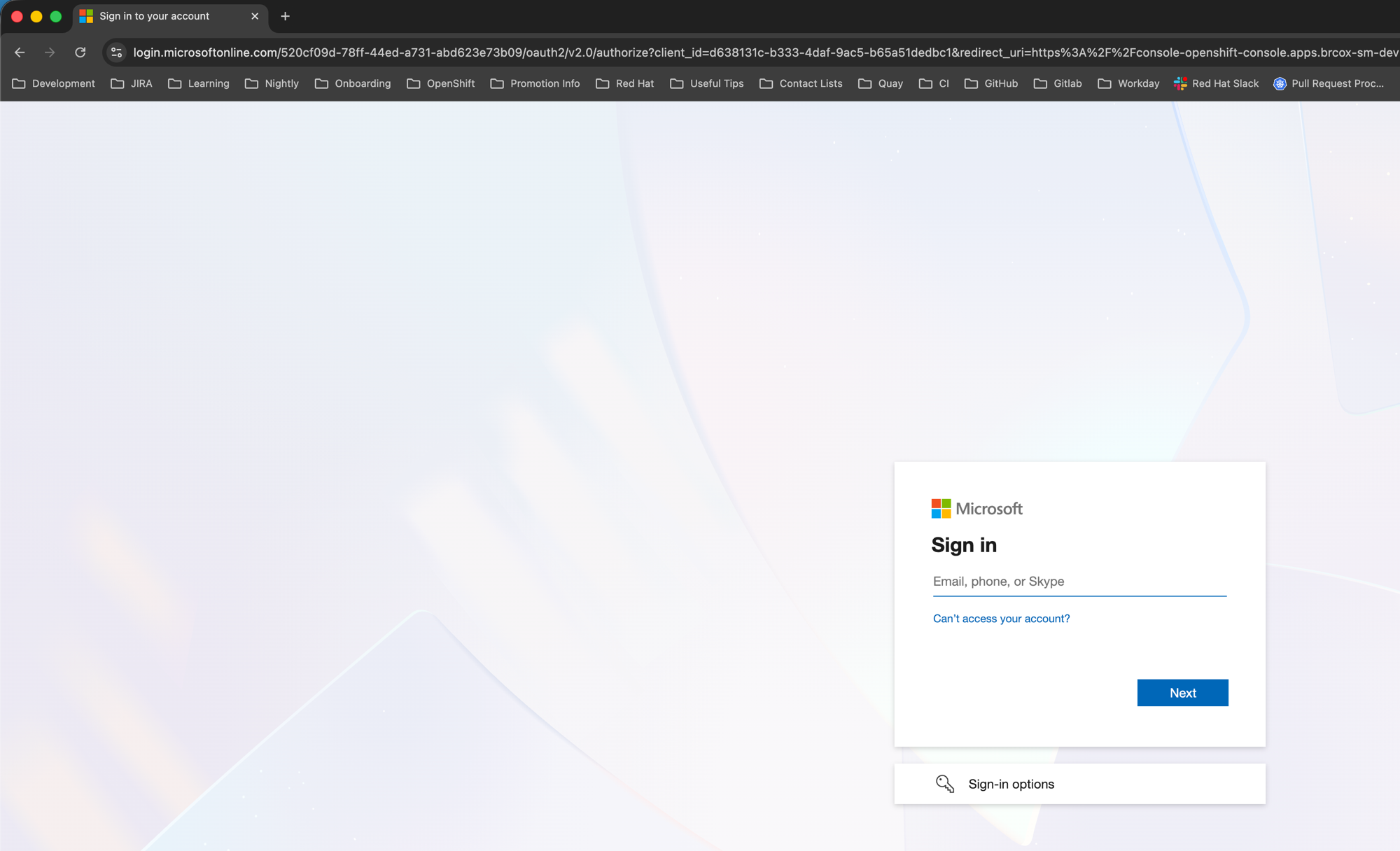

Azure AD login page showing Microsoft Sign in dialog

Azure AD authorization endpoint with correct client_id visible in the URL bar.

Step 2: Azure AD federated to Red Hat Internal SSO

After entering the @redhat.com email, Azure AD federated to the Red Hat Internal SSO for corporate authentication.

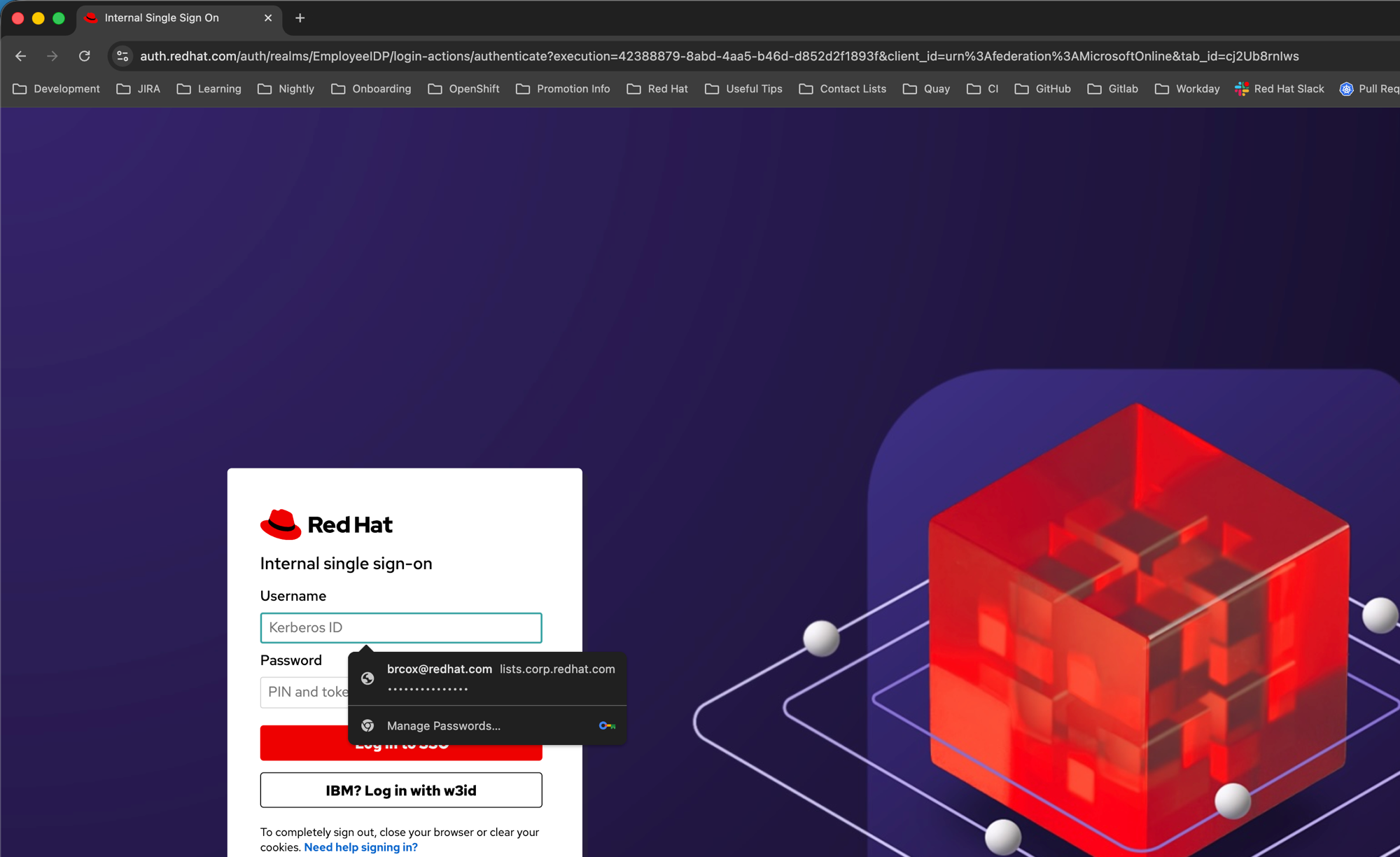

Red Hat Internal SSO (auth.redhat.com) with client_id=urn:federation:MicrosoftOnline confirming Azure AD federation.

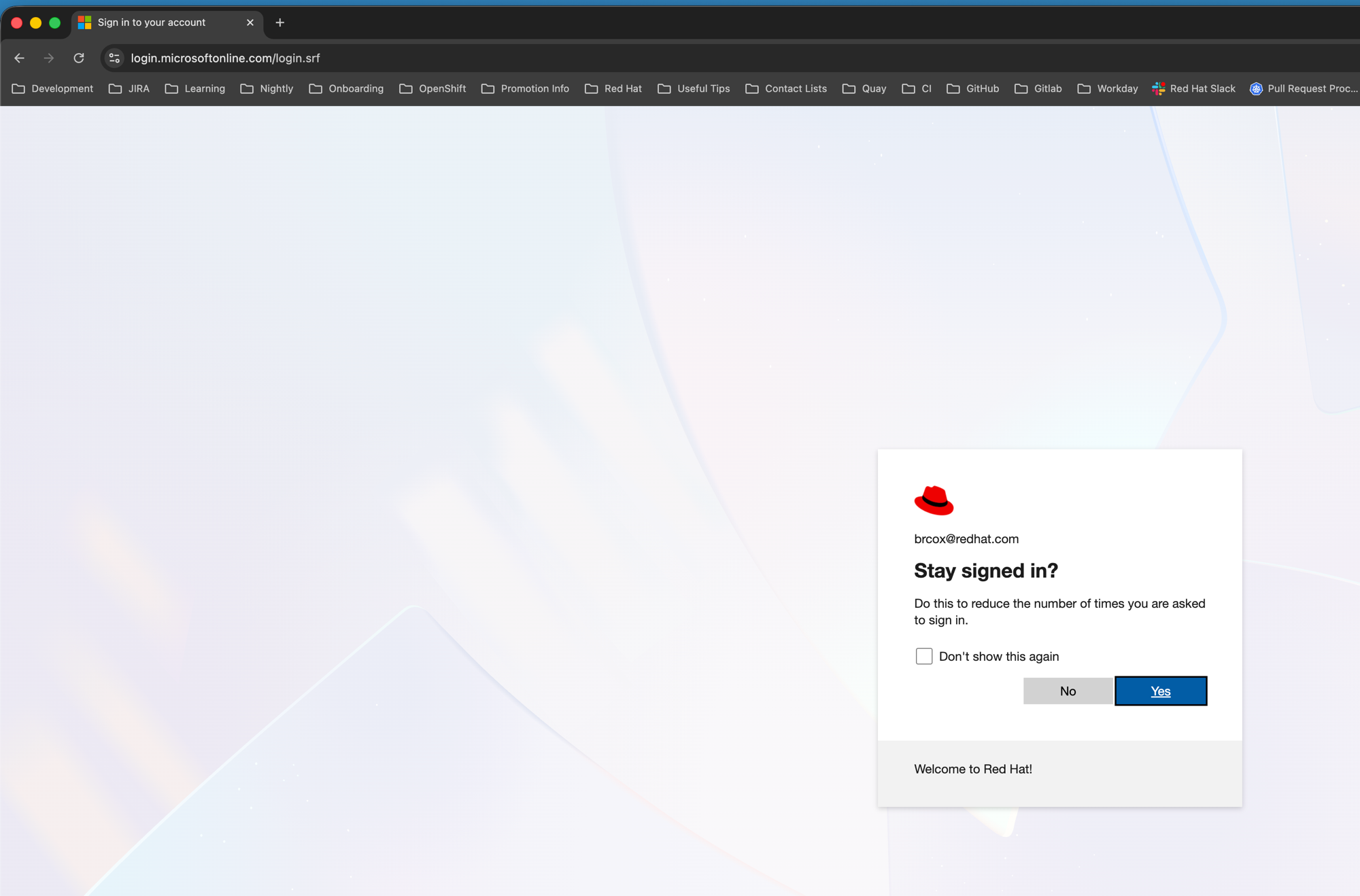

Step 3: Azure AD “Stay signed in?” prompt

After authenticating via Red Hat SSO, Azure AD displayed the session persistence prompt confirming successful authentication as br...@redhat.com.

Clicked “Yes” to proceed to the console.

Step 4: Console loaded with OIDC identity

Console loaded successfully with the OIDC user identity displayed in the top-right corner.

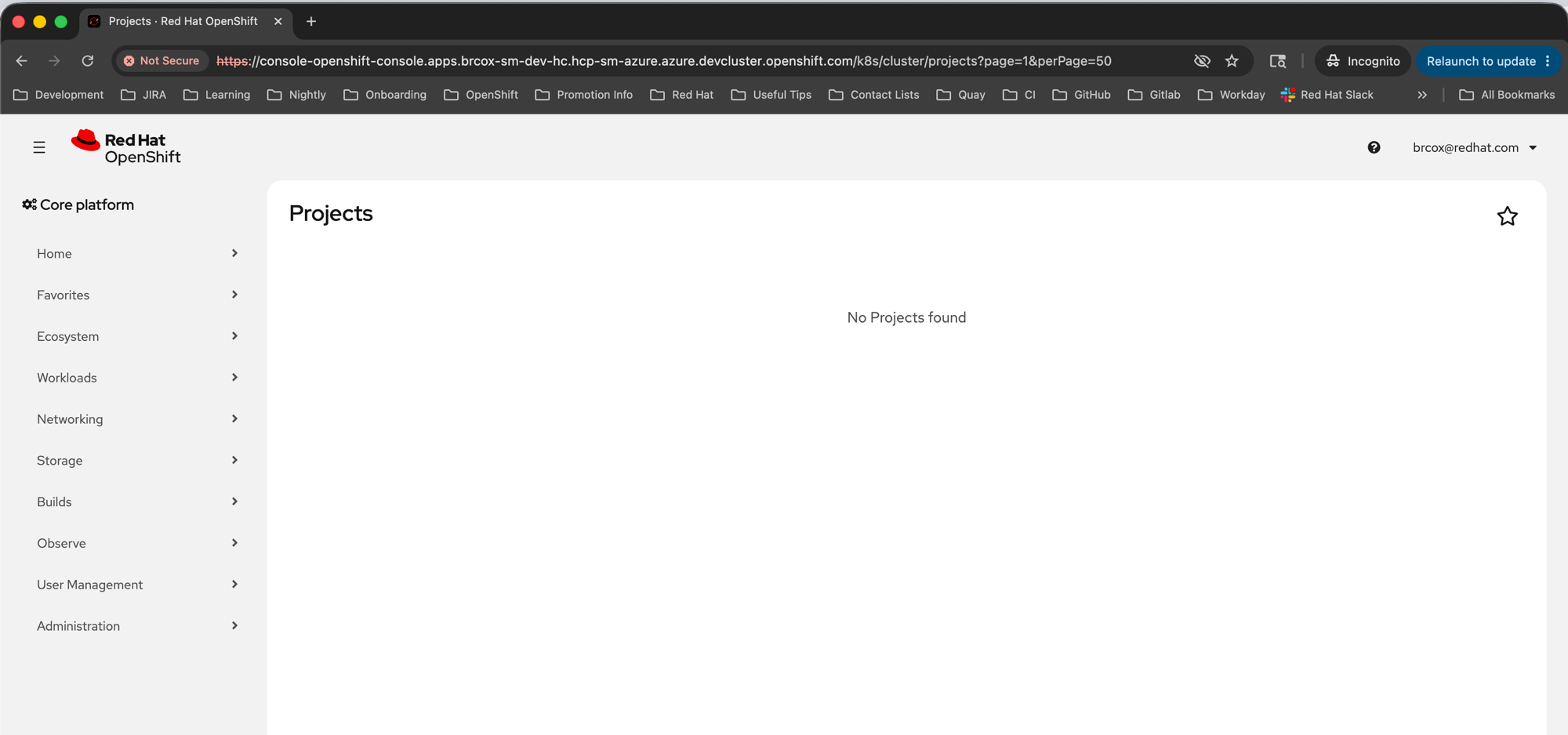

OpenShift console showing OIDC user identity in top right

Console shows br...@redhat.com in the top-right corner. “No Projects found” is expected — the OIDC user has no RBAC roles assigned.

Key observations:

The console correctly used the OIDC authorization code flow with the configured client_id and redirect_uri
Azure AD federated to Red Hat Internal SSO for @redhat.com accounts, which is the expected behavior for the Red Hat Azure AD tenant
"No Projects found" confirms the OIDC user has no pre-existing RBAC permissions — this is correct behavior; cluster admins would need to create ClusterRoleBindings for the OIDC user or their groups
Testing in an incognito window was necessary to ensure a clean session (non-incognito reused a cached admin session)
